SPECIFICATIONS

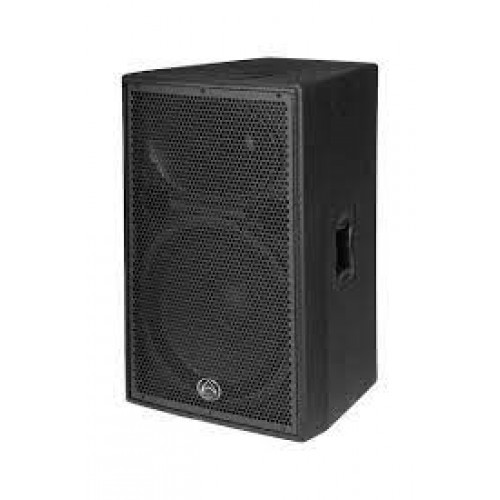

Model Name : DELTA-X15 System Type : Passive Configuration : Two-way Frequency Response (+/-3dB) : 50-20KHZ Frequency Range (- 10 dB) : 45-20KHZ Sensitivity (2.83v/1m) : 98dB Calculated Maximum SPL @1m : 131dB System Rated Impedance : 8Ω Low Frequency Transducer Size : 404mm / 15" Paper Voice-Coil Size : 77.1mm / 3" Rated Impedance : 8Ω LF Power (re:AES2-2012) : 500W High Frequency Transducer HF Driver Type : Compression Driver Voice-Coil Size : 50.8mm / 2" Titanium Exit Size : 35.6mm / 1.4" Diaphragm Material : Titanium Rated Impedanc : 8Ω HF Power (re:AES2-2012) : 50W Nominal Coverage (H x V) : 90⁰ x 45⁰ Power System Continuous Power : 500W System Programme Power : 1000W System Peak Power : 2000W Crossover frequency : 1.8kHz Input Connector : 2 x NL4 (speakON Compatible) Hardware Pole Mount : Dual Angle (0⁰ / 10⁰) 35mm Socket Handles : 2 on Sides Enclosure Enclosure Material : 15mm Plywood Finish : black paint Grille Material & Finish : 1.5 mm Steel Black Dimensions - Unpacked Height : 700mm / 27.6" Width Front : 446mm / 17.6" Width Rear : 281.4mm / 11.1" Depth : 406mm / 16.0" Dimensions - Packed Height : 803mm / 31.6" Width Front : 622mm / 24.5" Width Rear : 622mm / 24.5" Depth : 498mm / 19.6" Weight Net Weight (kg / lbs) : 29.9kg / 65.9lbs Gross Weight (kg / lbs) : 35.5kg / 78.1lbs
